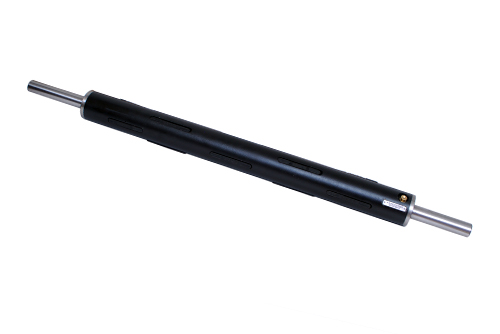

Air Expanding Shafts

We are one of the leading manufacturers of Air Expanding Shaft available in different sizes.
Features
  • Pays for itself in very little time due to decreased down time during roll changes.
  • Eliminates possibility of core damage.
  • Large bladder diameter produces maximum possible holding torque.
  • Standardized design allow us to manufacture the shaft in any size diameter
  • Each gripper offers a designed chamfer for easy core insertion
  • No parts to remove or lose.
Technical Specifications

Body Alloy steel / Aluminium
Load Capacity Upto 3000kg
Length Upto 4.0 meters
Air Pressure 0 to 6 Bar
End Piece Alloy steel (EN-24), Hard Chrome Plated & Tempered
Available Sizes 25mm, 38mm, 50mm, 63mm, 76mm, 100mm, 120mm, 152mm, 202mm
