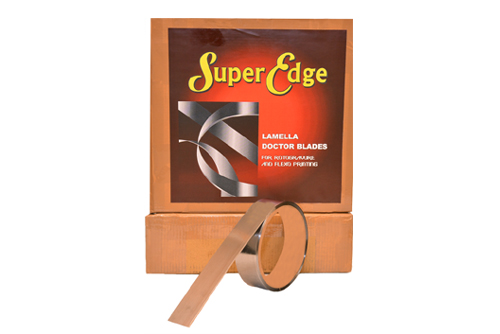

Doctor Blade
With high carbon spring steel imported from Sweden
and Germany excellent producing technology, Weoffer different kinds of Super
Edge doctor blades suitable for flexo, coating and Rotogravure machines. Our
complete range of products can meet each company's individual printing
needs. We win the customers' appreciation due to the consistent quality and
highest durability of our doctor blades.
Features
- The main benefit of Doctor Blade
is to remove the ink from the impression cylinders.
- Increase quality of film.
- Our Blade is made from imported
material which prevents the damage on cylinders.
- Highly durable
- Highly Flexible so less chances
of cylinder damage.
- Corrosion and wear resistance
- Longer life as compared to
conventional blades
Technical Specifications
| Application |
Rotogravure & Flexographic printing, Lamination &
Coating and Water base ink coating. |
| Material |
Highly Carbon steel |
| Thickness |
0.15mm / 0.20mm and others on demand of Customer |
| Lamella |
50-120 micron +/- 5m |
| Available Sizes |
25 to 100mm |
Points for Improving Printing Quality
- Use a high quality SUPER EDGE
doctor blade with dimensions suitable for your ink and anilox type
- Inspect the doctor blade holder
for damages. Dents, nicks or bends make the doctor blade setup wavy.
- Try to achieve a 55-65 degree
contact angle between doctor blade and cylinder
- Use a blade pressure of 0,5-1,0
bar, increase more if there is no clean wipe
- Check so doctor blade extensions
are correct
